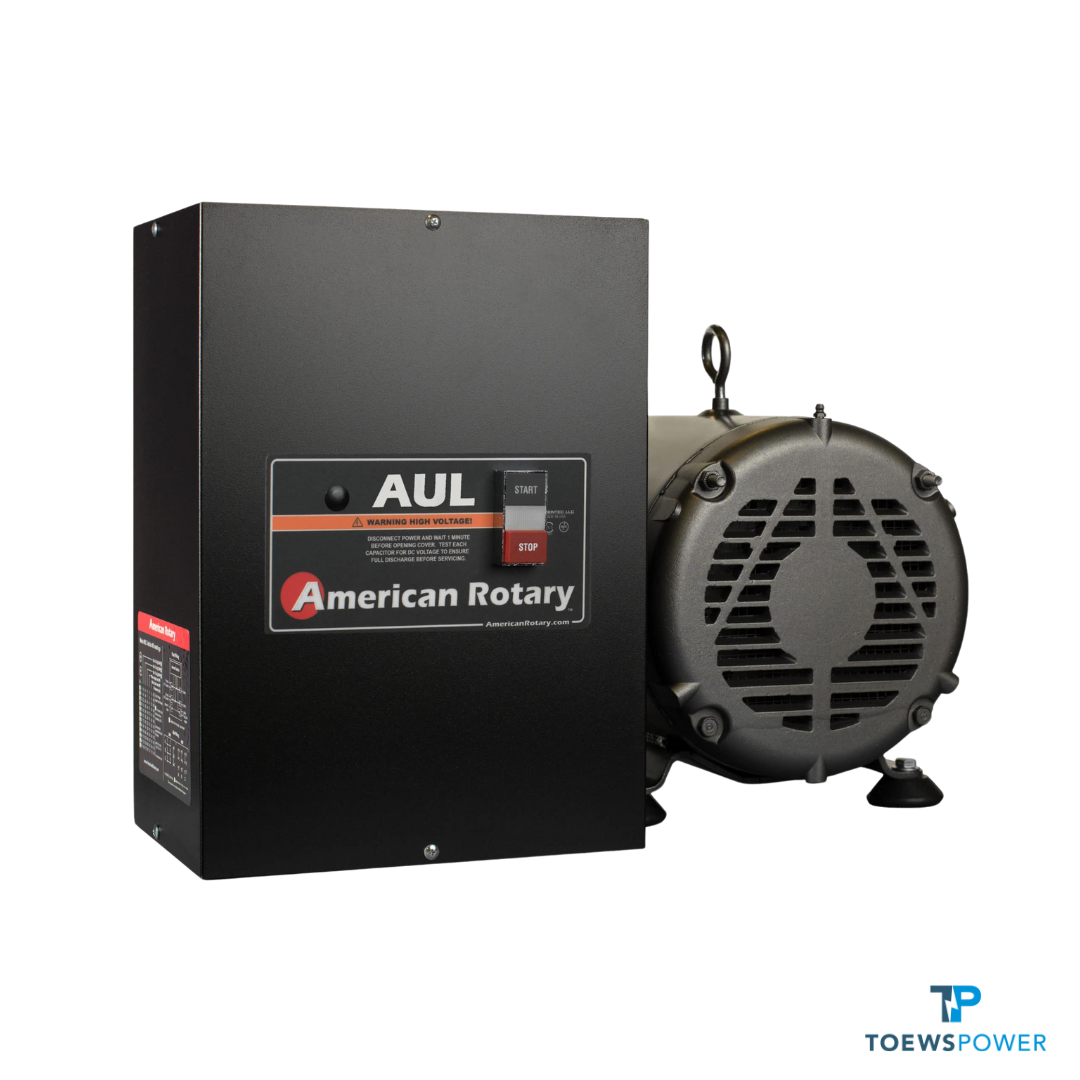

AUL Smart Series Rotary Phase Converter
AUL Smart Series Rotary Phase Converter
AUL Smart Series Rotary Phase Converter
AUL Smart Series Rotary Phase Converter
AUL Smart Series Rotary Phase Converter
AUL Smart Series Rotary Phase Converter
AUL Smart Series Rotary Phase Converter
AUL Smart Series Rotary Phase Converter

AUL Smart Series Rotary Phase Converter

Regular price
$1,311.00
Sale price
$1,311.00
Quantity must be 1 or more

Please Note: Larger units AUL100-300HP require a lead time. These units are made up of multiple units linked together via an enclosed contactor. Please contact us for current lead time and to learn more! Toll-Free: 877-220-9728

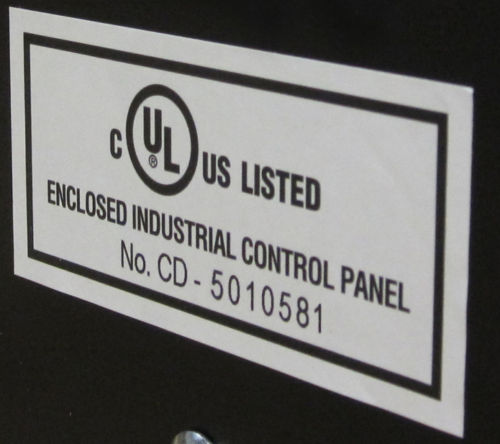

AUL Series, Extreme Duty - This SMART Series Phase Converter is manufactured by American Rotary and will convert 1 to 3 Phase power and provide 100% power for 208-250v equipment. All units are UL/CUL Listed.

The AUL series phase converters have current control to provide consistent torque while starting high inertia, extremely hard starting loads, yet are precise enough for CNC applications.

Best for: High Inertia/friction loads such as pumps, fans, compressors, blowers, dust collectors and fly wheels.



 Power an entire shop with 3-phase.
 Quiet, continuous operation.
 Reliable & convenient alternative to utility 3-Phase.
 Affordable, Safe, Professional.

Features

American Rotary engineers the entire phase converter system to provide optimum performance. Our variable impedance generator (VIT) and MicroSmart controller combine to make the most powerful and precise rotary phase converter on the market.



Gentec VIT Generator
Stable Voltage & Sinewaves 3-phase motors just don't cut it when it comes to Phase Converters. The VIT Induction Generator, by design, balances poweer factor and phase angles which ultimately lead to true, undistorted sinewaves and more stable voltages.

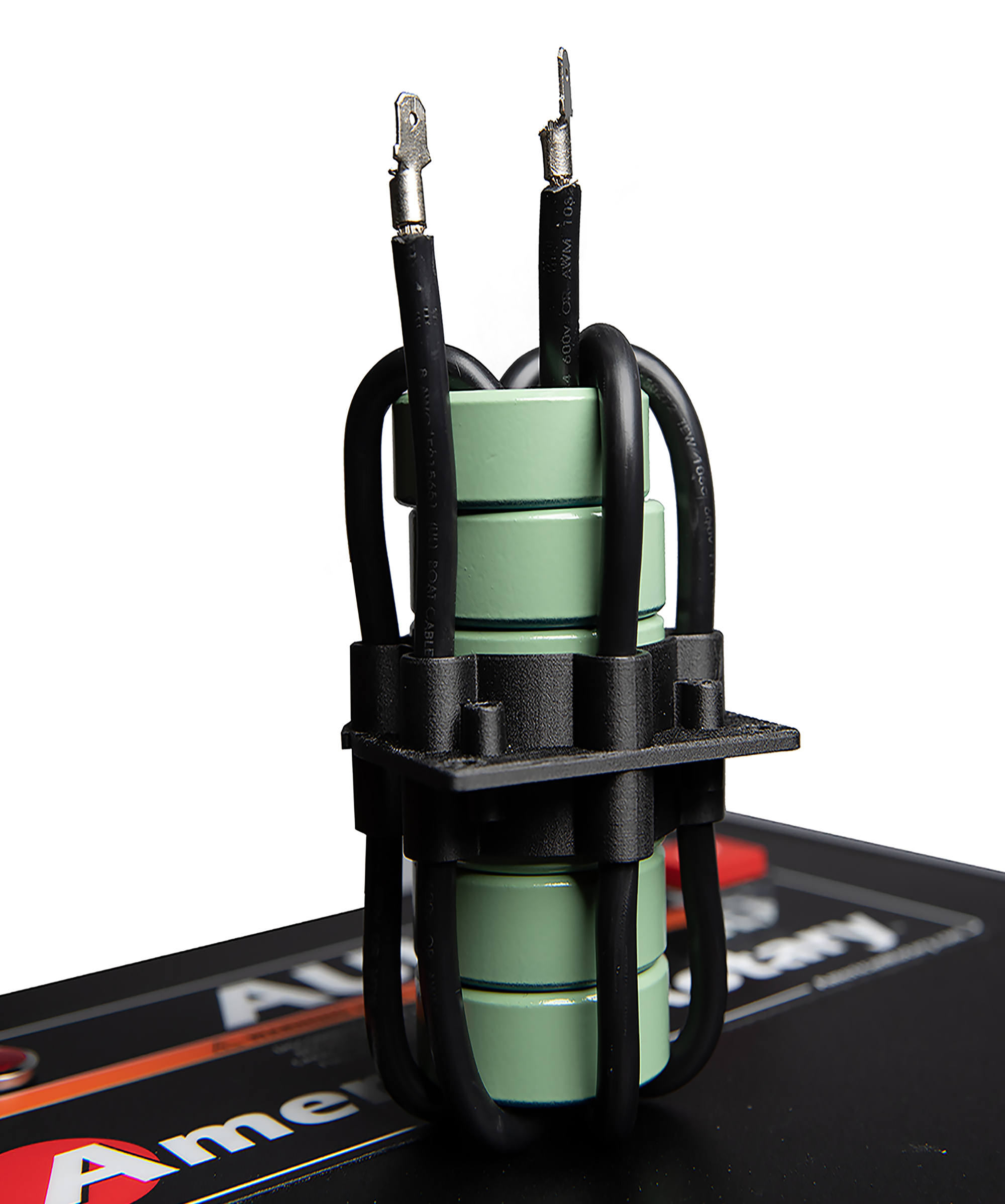

                                                              CTR Current Control
Engineered to perform. CTR (Current Transient Reactor) along with the Micro Smart controller allows high currents to be drawn through the phase converter (for high torque) while maintaining voltage and power.

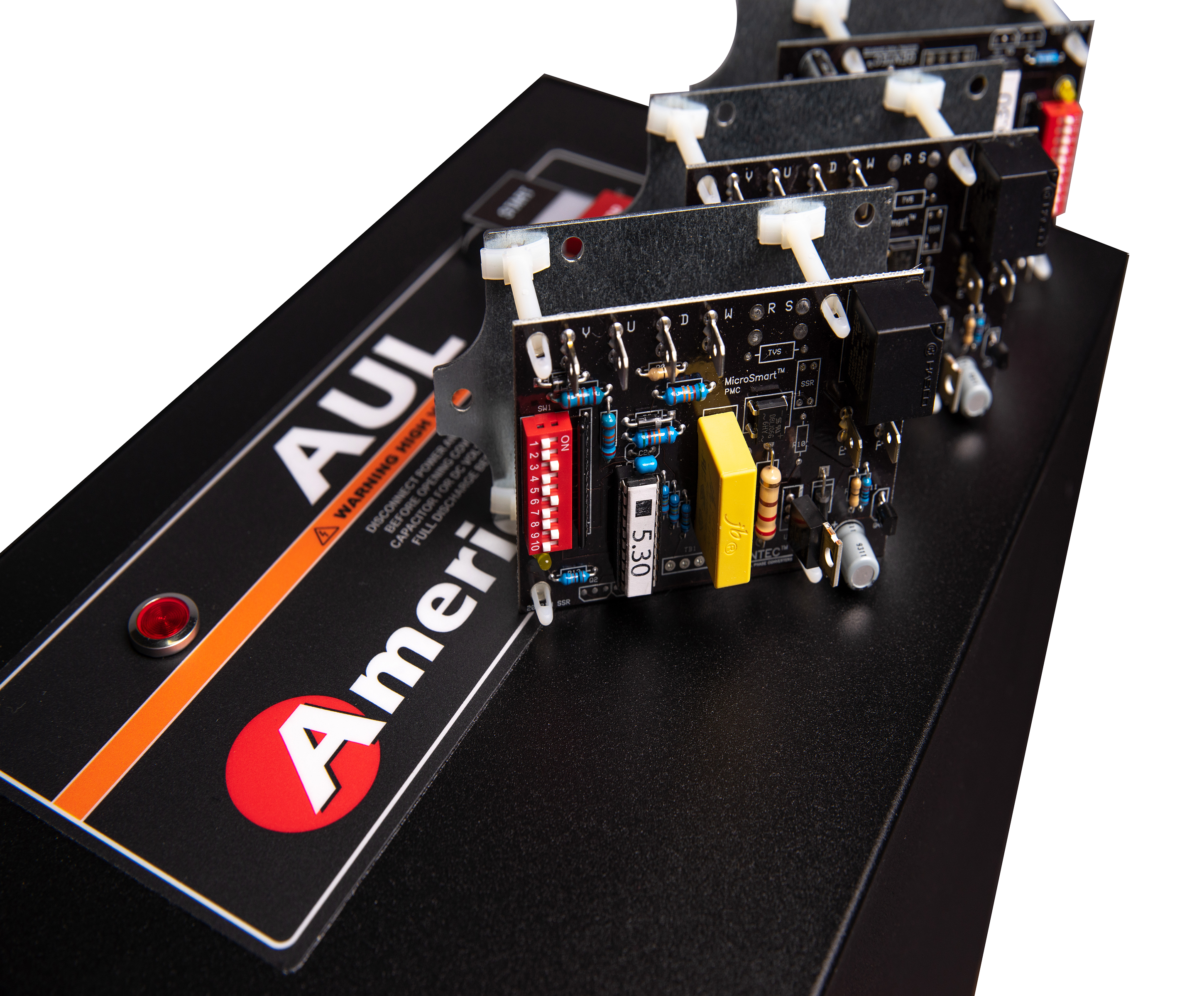

Smart Control
Programmable Smart Controller provides precise control of the phase converter. Digital control provides better voltage balance, prolonged life of the converter, significantly more load starting capacity (ADX), and several failsafe features only available in the American Rotary's Smart Series Phase Converters.








See our Entire Shop List!

One Download ... All the Info

Specification Sheet, Wiring Diagram, Installation Guide, Dimensional Drawings

Download the installation manual HERE!

Buy with Confidence

Meeting the demands of tough industrial applications with dependability & quality.
American Rotary has become a trusted name in the industrial Power Industry.
